Background Primitive Data Classes (primitives)

Introduction

There are two “primitive” data classes for background data: the BackgroundRates class, which contains background model rates and uncertainties for a time history of multi-channel data, and the BackgroundSpectrum class, which contains the background model count spectrum. The former largely inherits from the TimeEnergyBins primitive, while the latter inherits from the EnergyBins primitive. These classes are then complimented with their non-energy calibrated counterparts, BackgroundChannelRates and BackgroundChannelSpectrum, which instead inherit from TimeChannelBins and ChannelBins, respectively.

The BackgroundRates Class

The model for the BackgroundRates class is the same as for TimeEnergyBins with two important distinctions:

1. The initialization of BackgroundRates requires rates instead of counts. This is because we are storing a model instead of observed counts.

2. The initialization also requires a rate uncertainty because the background model may have Gaussian (or other) uncertainties associated with it.

Those differences on initialization aside, BackgroundRates operates, and has most of the same attributes and methods that TimeEnergyBins has.

Examples

As an example, let’s assume we have a segment of a background model of energy calibrated data. We need the modeled background rate and uncertainty in each channel and each time bin. Of course we also need to know the bin edges and exposures.

>>> from gdt.core.background.primitives import BackgroundRates
>>> # three energy channels and four time bins
>>> rates = [[30.0, 50.0, 10.0], [35.0, 55.0, 15.0],
>>>          [40.0, 60.0, 20.0], [45.0, 65.0, 25.0]]
>>> # 10% uncertainty
>>> rate_uncert = [[3.0, 5.0, 1.0], [3.5, 5.5, 1.5],
>>>                [4.0, 6.0, 2.0], [4.5, 6.5, 2.5]]
>>>
>>> tstart = [0.0, 1.0, 2.0, 3.0]
>>> tstop = [1.0, 2.0, 3.0, 4.0]
>>> exposure = exposure = [1.0] * 4
>>> emin = [10.0, 50.0, 150.0]
>>> emax = [50.0, 150., 300.0]
>>> back_rates = BackgroundRates(rates, rate_uncert, tstart, tstop, emin, emax,
>>>                              exposure=exposure)
>>> back_rates
<BackgroundRates: 4 time bins;
 time range (0.0, 4.0);
 1 time segments;
 3 energy bins;
 energy range (10.0, 300.0);
 1 energy segments>

In our simple example, we’ve assumed each rate has a 10% relative uncertainty, and that we have no deadtime (exposure equals bin width). You can access all of the same attributes as you would with TimeEnergyBins. For example

>>> back_rates.time_centroids
array([0.5, 1.5, 2.5, 3.5])

>>> back_rates.rates_per_kev
array([[0.75      , 0.5       , 0.06666667],
       [0.875     , 0.55      , 0.1       ],
       [1.        , 0.6       , 0.13333333],
       [1.125     , 0.65      , 0.16666667]])

Also similar to TimeEnergyBins you can slice by energy or time:

>>> back_rates.slice_energy(20.0, 100.0)
<BackgroundRates: 4 time bins;
 time range (0.0, 4.0);
 1 time segments;
 2 energy bins;
 energy range (10.0, 150.0);
 1 energy segments>

>>> back_rates.slice_time(1.0, 3.0)
<BackgroundRates: 2 time bins;
 time range (1.0, 3.0);
 1 time segments;
 3 energy bins;
 energy range (10.0, 300.0);
 1 energy segments>

You can merge multiple BackgroundRates objects in time:

>>> back_slice1 = back_rates.slice_time(0.0, 1.0)
>>> back_slice2 = back_rates.slice_time(3.0, 4.0)
>>> BackgroundRates.merge_time([back_slice1, back_slice2])
<BackgroundRates: 2 time bins;
 time range (0.0, 4.0);
 2 time segments;
 3 energy bins;
 energy range (10.0, 300.0);
 1 energy segments>

Note that we slice the object into two discontiguous segments and then merged them together. You can even sum multiple BackgroundRates together along the time axis, like in a scenario where you want to add the backgrounds from multiple detectors together:

>>> back_rates_double = BackgroundRates.sum_time([back_rates, back_rates])
>>> back_rates_double.rate
array([[ 60., 100.,  20.],
       [ 70., 110.,  30.],
       [ 80., 120.,  40.],
       [ 90., 130.,  50.]])

You can integrate a BackgroundRates object over energy to create a new, single-channel BackgroundRates object:

>>> # integrate over full energy range
>>> back_rates.integrate_energy()
<BackgroundRates: 4 time bins;
 time range (0.0, 4.0);
 1 time segments;
 1 energy bins;
 energy range (10.0, 300.0);
 1 energy segments>

>>> # integrate over partial energy range
>>> back_rates.integrate_energy(emin=50., emax=100.0)
<BackgroundRates: 4 time bins;
 time range (0.0, 4.0);
 1 time segments;
 1 energy bins;
 energy range (50.0, 150.0);
 1 energy segments>

Finally, the BackgroundRates can be integrated over time to produce a BackgroundSpectrum object:

>>> back_rates.integrate_time()
<BackgroundSpectrum: 3 bins;
 range (10.0, 300.0);
 1 contiguous segments>

Or you can directly create a background Bak object containing metadata that can the be written to disk:

>>> back_rates.to_bak(time_range=[1.0, 2.0], trigger_time=12345.678,
                      filename='holla.bak')
<Bak: holla.bak;
 trigger time: 12345.678;
 time range (1.0, 2.0);
 energy range (10.0, 300.0)>

The BackgroundChannelRates Class

The exact same procedure shown for BackgroundRates can be followed for the BackgroundChannelRates class with the following differences:

1. Instead of arrays emin and emax, BackgroundChannelRates takes a single

   list of channel numbers (chan_nums). e.g.:

   >>> chan_nums = [1, 2, 3]
   >>> back_rates = BackgroundChannelRates(rates, rate_uncert, tstart, tstop,
                                               chan_nums, exposure=exposure)


2. Methods that mention energy will instead mention channel, using the same naming scheme as TimeChannelBins.

3. Due to the lack of energy calibration, Bak objects cannot be created from BackgroundChannelRates objects.

4. When time integrated, the BackgroundChannelRates object will return a BackgroundChannelSpectrum object.

5. There is no rate per keV attribute, as there is no energy calibration.

The BackgroundSpectrum Class

As with BackgroundRates, two distinctions separate the initialization of BackgroundSpectrum from EnergyBins:

1. Instead of initializing with counts, BackgroundSpectrum is initialized with the background rate in each energy channl.

2. BackgroundSpectrum must also be initialized with the rate uncertainty in each energy channel.

Other than those differences in initialization, most of the attributes and methods are shared with EnergyBins.

Examples

Often BackgroundSpectrum isn’t initialized by the user, but rather is derived from BackgroundRates; however it can be initialized in the following way:

>>> from gdt.core.background.primitives import BackgroundSpectrum
>>> rates = [37.5, 57.5, 17.5]
>>> rate_uncert = [1.896, 2.889, 0.919]
>>>
>>> emin = [10.0, 50.0, 150.0]
>>> emax = [50.0, 150., 300.0]
>>> exposure = 4.0
>>> back_spec = BackgroundSpectrum(rates, rate_uncert, emin, emax, exposure)
>>> back_spec
<BackgroundSpectrum: 3 bins;
 range (10.0, 300.0);
 1 contiguous segments>

The BackgroundSpectrum object has a variety of attributes, including the counts and count uncertainty in each channel, which are derived quantities:

>>> back_spec.counts
array([150., 230.,  70.])
>>> back_spec.count_uncertainty
array([ 7.584, 11.556,  3.676])

The BackgroundSpectrum object can be sliced in energy in the following way:

>>> back_spec.slice(50.0, 100.0)
<BackgroundSpectrum: 1 bins;
 range (50.0, 150.0);
 1 contiguous segments>

Multiple BackgroundSpectrum objects can be also be summed, as long as they have the same energy range and number of channels:

>>> back_spec_double = BackgroundSpectrum.sum([back_spec, back_spec])
>>> back_spec_double.counts
array([300., 460., 140.])

The BackgroundChannelSpectrum Class

Again, the exact same procedure shown for BackgroundSpectrum can be followed for the BackgroundChannelSpectrum class. The only difference in initialization is that BackgroundChannelSpectrum takes a single list of channel numbers (chan_nums) in place of emin and emax. e.g.:

>>> chan_nums = [1, 2, 3]
>>> back_spec = BackgroundChannelSpectrum(rates, rate_uncert, chan_nums,
                                        exposure=exposure)

The BackgroundChannelSpectrum object has the same attributes and methods as BackgroundSpectrum, but with the same naming conventions as ChannelBins.

Reference/API

gdt.core.background.primitives Module

Classes

BackgroundRates(rates, rate_uncertainty, ...)	Class containing the background rate data.
BackgroundSpectrum(rates, rate_uncertainty, ...)	A class defining a Background Spectrum.
BackgroundChannelRates(rates, ...[, exposure])	Class containing the background rate data for non-energy calibrated data.
BackgroundChannelSpectrum(rates, ...)	A class defining a Background Channel Spectrum.

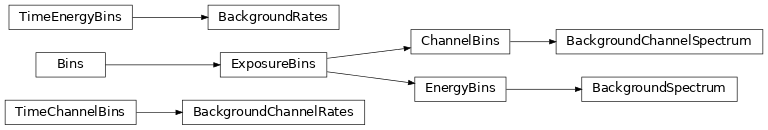

Class Inheritance Diagram
