Fermi GBM FITS Headers (gdt.missions.fermi.gbm.headers)

This module defines all of the FITS headers for the public data files. While these classes are not usually directly called by the user, we may load one up and see the contents and default values. For example, here is the set of header definitions for triggered PHAII (CTIME and CSPEC) files:

>>> from gdt.missions.fermi.gbm.headers import PhaiiTriggerHeaders
>>> hdrs = PhaiiTriggerHeaders()
>>> hdrs
<PhaiiTriggerHeaders: 4 headers>

Here is the PRIMARY header and default values (retrieved by index):

>>> hdrs[0]
CREATOR = 'Gamma-ray Data Tools 2.0.0' / Software and version creating file
FILETYPE= '' / Name for this type of FITS file
FILE-VER= '1.0.0   '           / Version of the format for this filetype
TELESCOP= 'GLAST   '           / Name of mission/satellite
INSTRUME= 'GBM     '           / Specific instrument used for observation
DETNAM  = '' / Individual detector name
OBSERVER= 'Meegan  '           / GLAST Burst Monitor P.I.
ORIGIN  = 'GIOC    '           / Name of organization making file
DATE    = '2023-02-12T22:18:54.906' / file creation date (YYYY-MM-DDThh:mm:ss UT
DATE-OBS= '' / Date of start of observation
DATE-END= '' / Date of end of observation
TIMESYS = 'TT      '           / Time system used in time keywords
TIMEUNIT= 's       '           / Time since MJDREF, used in TSTART and TSTOP
MJDREFI =                51910 / MJD of GLAST reference epoch, integer part
MJDREFF = '7.428703703703703e-4' / MJD of GLAST reference epoch, fractional part
TSTART  =                  0.0 / [GLAST MET] Observation start time
TSTOP   =                  0.0 / [GLAST MET] Observation stop time
FILENAME= '' / Name of this file
DATATYPE= '' / GBM datatype used for this file
TRIGTIME=                  0.0 / Trigger time relative to MJDREF, double precisi
OBJECT  = '' / Burst name in standard format, yymmddfff
RADECSYS= 'FK5     '           / Stellar reference frame
EQUINOX =               2000.0 / Equinox for RA and Dec
RA_OBJ  =                  0.0 / Calculated RA of burst
DEC_OBJ =                  0.0 / Calculated Dec of burst
ERR_RAD =                  0.0 / Calculated Location Error Radius

And here is the SPECTRUM header and default values:

>>> hdrs['SPECTRUM']
EXTNAME = 'SPECTRUM'           / name of this binary table extension
TELESCOP= 'GLAST   '           / Name of mission/satellite
INSTRUME= 'GBM     '           / Specific instrument used for observation
DETNAM  = '' / Individual detector name
OBSERVER= 'Meegan  '           / GLAST Burst Monitor P.I.
ORIGIN  = 'GIOC    '           / Name of organization making file
DATE    = '2023-02-12T22:18:54.906' / file creation date (YYYY-MM-DDThh:mm:ss UT
DATE-OBS= '' / Date of start of observation
DATE-END= '' / Date of end of observation
TIMESYS = 'TT      '           / Time system used in time keywords
TIMEUNIT= 's       '           / Time since MJDREF, used in TSTART and TSTOP
MJDREFI =                51910 / MJD of GLAST reference epoch, integer part
MJDREFF = '7.428703703703703e-4' / MJD of GLAST reference epoch, fractional part
TSTART  =                  0.0 / [GLAST MET] Observation start time
TSTOP   =                  0.0 / [GLAST MET] Observation stop time
TRIGTIME=                  0.0 / Trigger time relative to MJDREF, double precisi
OBJECT  = '' / Burst name in standard format, yymmddfff
RADECSYS= 'FK5     '           / Stellar reference frame
EQUINOX =               2000.0 / Equinox for RA and Dec
RA_OBJ  =                  0.0 / Calculated RA of burst
DEC_OBJ =                  0.0 / Calculated Dec of burst
ERR_RAD =                  0.0 / Calculated Location Error Radius
FILTER  = 'none    '           / The instrument filter in use (if any)
AREASCAL=                  1.0 / No special scaling of effective area by channel
BACKFILE= 'none    '           / Name of corresponding background file (if any)
BACKSCAL=                  1.0 / No scaling of background
CORRFILE= 'none    '           / Name of corresponding correction file (if any)
CORRSCAL=                  1.0 / Correction scaling file
RESPFILE= 'none    '           / Name of corresponding RMF file (if any)
ANCRFILE= 'none    '           / Name of corresponding ARF file (if any)
SYS_ERR =                  0.0 / No systematic errors
POISSERR=                    T / Assume Poisson Errors
GROUPING=                    0 / No special grouping has been applied
HDUCLASS= 'OGIP    '           / Conforms to OGIP standard indicated in HDUCLAS1
HDUCLAS1= 'SPECTRUM'           / PHA dataset (OGIP memo OGIP-92-007)
HDUCLAS2= 'TOTAL   '           / Indicates gross data (source + background)
HDUCLAS3= 'COUNT   '           / Indicates data stored as counts
HDUCLAS4= 'TYPEII  '           / Indicates PHA Type II file format
HDUVERS = '1.2.1   '           / Version of HDUCLAS1 format in use
CHANTYPE= 'PHA     '           / No corrections have been applied
DETCHANS=                    0 / Total number of channels in each rate
EXTVER  =                    1 / Version of this extension format

See Data File Headers for more information about creating and using FITS headers.

Reference/API

gdt.missions.fermi.gbm.headers Module

Classes

HealpixHeaders()	FITS headers for localization HEALPix files
PhaHeaders()	FITS headers for PHA files
PhaiiHeaders()	FITS headers for continuous CTIME and CSPEC files
PhaiiTriggerHeaders()	FITS headers for trigger CTIME and CSPEC files
PosHistHeaders()	FITS headers for position history files
RspHeaders()	FITS headers for detector response files
ScatHeaders()	FITS headers for spectral fits files
TcatHeaders()	FITS headers for trigger catalog files
TrigdatHeaders()	FITS headers for TRIGDAT files
TteHeaders()	FITS headers for continuous TTE files
TteTriggerHeaders()	FITS headers for trigger TTE files

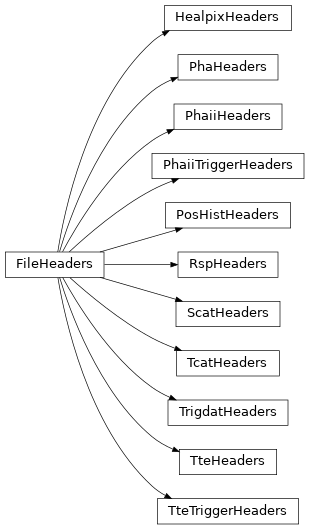

Class Inheritance Diagram
