Fermi GBM Trigger Data (gdt.missions.fermi.gbm.trigdat)

TRIGDAT was designed so that it contains the minimum amount of data required for rapid on-ground characterization and localization of triggers. To that purpose, the TRGIDAT contains 8-channel pre-binned lightcurve data for each of the 14 detectors along with spacecraft position and attitude information for each bin. The lightcurve data, though, has multiple resolutions. There are “background” time bins of duration 8.124 s from the start of the trigger data to just before trigger time, and then about 50 s after the trigger time through the rest of the data. In between the two segments of “background” bins, there are 1.024 s duration bins, and in a very short window around the trigger time, there are overlapping bins of width 256 and 64 ms. This design enables a preliminary rapid analysis for long duration triggers that can last from several tens of seconds down sub-second duration triggers. The fact that the different bin timescales are overlapping creates difficulty if you want to make lightcurve plots, but the Trigdat class solves this problem for you.

Let’s open a TRIGDAT file:

>>> from gdt.core import data_path
>>> from gdt.missions.fermi.gbm.trigdat import Trigdat
>>> filepath = data_path.joinpath('fermi-gbm/glg_trigdat_all_bn170101116_v01.fit')
>>> trigdat = Trigdat.open(filepath)
>>> trigdat
<Trigdat: glg_trigdat_all_bn170101116_v01.fit;
 trigtime=504931642.87; triggered detectors=['n9', 'na', 'nb']>

There is a ton of metadata and extensions related to how the trigger was processed onboard the spacecraft: the trigger timescale and rates in each detector, the simple background rates that are used onboard the spacecraft, and the onboard trigger classification and localization information. We really won’t delve into all of that other than to point out that it exists and is accessible through the Trigdat attributes and methods. As for the extensions:

>>> trigdat.headers.keys()
['PRIMARY', 'TRIGRATE', 'BCKRATES', 'OB_CALC', 'MAXRATES', 'EVNTRATE']

The pertinent data we want to use is in the ‘EVNTRATE’ extension. Since this contains the 8-channel lightcurve for each of the detectors, we can extract the data for a detector and return it as PHAII object:

>>> phaii = trigdat.to_phaii('n0')
>>> phaii
<GbmPhaii:
 trigger time: 504931642.867272;
 time range (-137.85839196872712, 476.55260199308395);
 energy range (3.4, 2000.0)>

Once extracted, it has the full capabilities of the GbmPhaii class. We can also retrieve the sum of the detectors:

>>> # the triggered detectors
>>> trig_dets = trigdat.triggered_detectors
>>> trig_dets
['n9', 'na', 'nb']

>>> summed_phaii = trigdat.sum_detectors(trig_dets)
>>> summed_phaii
<GbmPhaii:
 trigger time: 504931642.867272;
 time range (-137.85839196872712, 476.55260199308395);
 energy range (3.4, 2000.0)>
>>> summed_phaii.detector
'n9+na+nb'

And then we can plot the lightcurve using the Lightcurve class (see Plotting Lightcurves for more info):

>>> import matplotlib.pyplot as plt
>>> from gdt.plot.lightcurve import Lightcurve
>>> lcplot = Lightcurve(summed_phaii.to_lightcurve())
>>> plt.show()

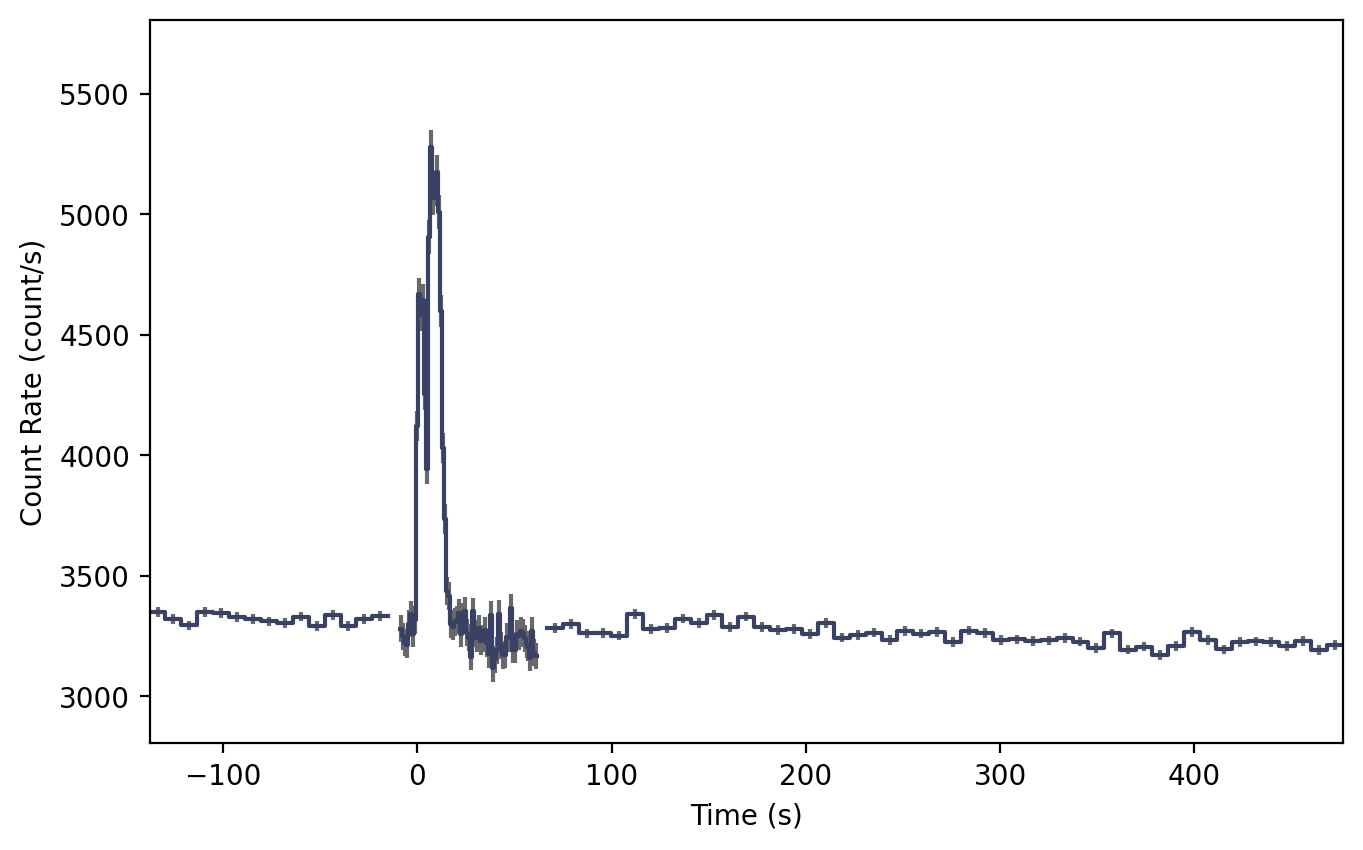

The plot shows where the 8 s timescale changes to the 1 s timescale and then back to the 8 s timescale. By default, we retrieve the 8-s and 1-s data for the lightcurve, but what if we want to retrieve the 256 ms or 64 ms timescales? We can do that by giving to_phaii() or sum_detectors() a timescale keyword:

>>> # retrieve all timescales 64 ms up to 8 s
>>> # possible options for timescale is 64, 256, or 1024
>>> summed_phaii = trigdat.sum_detectors(trig_dets, timescale=64)

>>> lcplot = Lightcurve(data=summed_phaii.to_lightcurve())
>>> lcplot.xlim = (-5.0, 5.0)

All timescales are now plotted and merged into a single lightcurve. The 64 ms option will return all timescales at >= 64 ms, while the 256 ms option will return all timescales >= 256 ms. This lightcurve doesn’t look particularly pretty because it’s a long-duration GRB, but short GRBs show up very nicely on the 64 and 256 ms timescales.

As mentioned earlier, TRIGDAT also contains spacecraft position history and attitude information. This means that nearly everything we can do with standard position history data can alse be done with TRIGDAT. For example, we can determine where the detectors were pointing at the time of the trigger:

>>> from gdt.missions.fermi.time import *
>>> time = Time(trigdat.trigtime, format='fermi')
>>> # the spacecraft frame at trigger time
>>> frame = trigdat.poshist.at(time)
>>> # get n9 pointing in the ICRS frame
>>> trigdat.poshist.detectors.n9.skycoord(frame).icrs
<SkyCoord (ICRS): (ra, dec) in deg
    [(68.87778267, 17.76359435)]>

See Fermi GBM Position/Attitude History Data for more information about working with position history data.

We can also make a sky plot:

>>> from gdt.core.plot.sky import EquatorialPlot
>>> eqplot = EquatorialPlot()
>>> eqplot.add_frame(trigdat.poshist.at(time))

Or even an orbital plot:

>>> from gdt.missions.fermi.plot import FermiEarthPlot
>>> from gdt.missions.fermi.gbm.saa import GbmSaa
>>> earthplot = FermiEarthPlot(saa=GbmSaa())
>>> earthplot.add_spacecraft_frame(trigdat.poshist, trigtime=time)

See Plotting Sky Maps, Localizations, and Wide-field Effective Area and Plotting Spacecraft in Earth Orbit, respectively, for more details on these plots.

Reference/API

gdt.missions.fermi.gbm.trigdat Module

Classes

Trigdat()	Class for the GBM Trigger Data
MaxRates()	Class for the MAXRATES and TRIGRATE data in Trigdat.
BackRates()	Class for the background rates data in Trigdat.
FswLocation()	Class for the Flight Software localization information.
